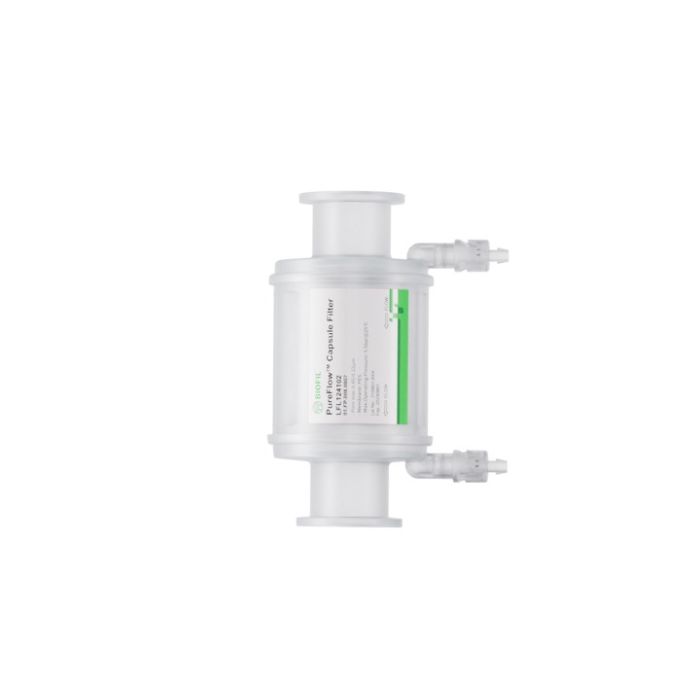

PureFlow ™ Capsule Sterilizing Filters
Product Summary
| Specification | D Series L Series 2.0" L Series 5.0" L Series 10.0" |
Product Description
Capsule sterilizing filters are primarily used for the aseptic liquid filtration of cell culture media, buffer solutions, intermediate solutions, stock solutions, and semi-finished products in processes of biopharmaceuticals. They serve as critical consumables for aseptic liquid filtration and bioburden control in biopharmaceutical processes. Jet Biofil's PureFlow ™ Capsule Sterilizing Filters are ready-to-use filtration device made with premium double-layer hydrophilic asymmetric PES membranes. With pore sizes of 0.45µm and 0.22µm, the product effectively prevents early-stage clogging, sharply retains bacteria and particles, and achieves aseptic filtration. Product’s integrated design ensures ease of operation, offering excellent flow rates, large volume capacity, broad chemical compatibility, and excellent biocompatibility, to finally lessen bioburdens and boost bioprocess efficiency
Features
- Selected hydrophilic PES membranes with low protein adsorption ensure fast flow rates and high throughput
- Double-layer asymmetric PES membrane for capable dirt-holding capacity and high throughput
- Reliable bacterial and particulate retention capacity
- Multiple connection options available, allowing for linear scale-up from R&D to process scale
- Excellent biocompatibility and broad chemical compatibility (pH 1-14)
- Ultra-low extractable levels and without fiber shedding, avoiding contamination of fluids
- Undergone 100% filter integrity assessment
Material
- Filter Membrane: Polyethersulfone (PES)
- Filter Membrane Protective Layer: Polypropylene (PP),
- Capsule Housing: Polypropylene (PP)
- Filter Membrane Protective Layer: Polypropylene (PP)
- O-ring: Silicone
- Conforming to USP Class VI standards
Order Information
| Cat. No. | Size | Effective Filtration Area (m 2 ) | Membrane Material | Membrane Pore Size | Connection (Inlet/Outlet) | Sterile | Qty. Per Box | Qty. Per Case |
| LFD124303 | D Series | 0.03 | PES | 0.2μm+0.45μm | 1/4" Multi Stepped Hose Barb-1/4" Multi Stepped Hose Barb | Y | 5 | 20 |
| LFL124002 | 2'' | 0.1 | PES | 0.2μm+0.45μm | 1" Sanitary Flange-3/8" Single Stepped Hose Barb | Y | 1 | 4 |
| LFL124102 | 2'' | 0.1 | PES | 0.2μm+0.45μm | 1" Sanitary Flange-1" Sanitary Flange | Y | 1 | 4 |
| LFL124202 | 2'' | 0.1 | PES | 0.2μm+0.45μm | 3/8" Single Stepped Hose Barb-3/8" Single Stepped Hose Barb | Y | 1 | 4 |
| LFL124005 | 5'' | 0.2 | PES | 0.2μm+0.45μm | 1" Sanitary Flange-3/8" Single Stepped Hose Barb | Y | 1 | 4 |
| LFL124105 | 5'' | 0.2 | PES | 0.2μm+0.45μm | 1" Sanitary Flange-1" Sanitary Flange | Y | 1 | 4 |
| LFL124205 | 5'' | 0.2 | PES | 0.2μm+0.45μm | 3/8" Single Stepped Hose Barb-3/8" Single Stepped Hose Barb | Y | 1 | 4 |
| LFL124010 | 10" | 0.4 | PES | 0.2μm+0.45μm | 1" Sanitary Flange-3/8" Single Stepped Hose Barb | Y | 1 | 4 |
| LFL124110 | 10" | 0.4 | PES | 0.2μm+0.45μm | 1" Sanitary Flange-1" Sanitary Flange | Y | 1 | 4 |
| LFL124210 | 10" | 0.4 | PES | 0.2μm+0.45μm | 3/8" Single Stepped Hose Barb-3/8" Single Stepped Hose Barb | Y | 1 | 4 |
