| Catalog Number | 15822-1-AP |
| Synonyms | PKM2, PK-M2, PKM2 pyruvate kinase, muscle, PKM, Pyruvate kinase PKM |
| Host | Rabbit |
| Reactivity | human, mouse, rat and More (2) |
| Reactivity | human, mouse, rat, chicken, bovine |
| Form | Liquid |
| Formulation | PBS, Azide, Glycerol |
| Applications | WB, IHC, IF/ICC, IP, CoIP, ChIP, ELISA |
| Applications | WB, IHC, IF/ICC, IP, ELISA |
| Host / Isotype | Rabbit / IgG |

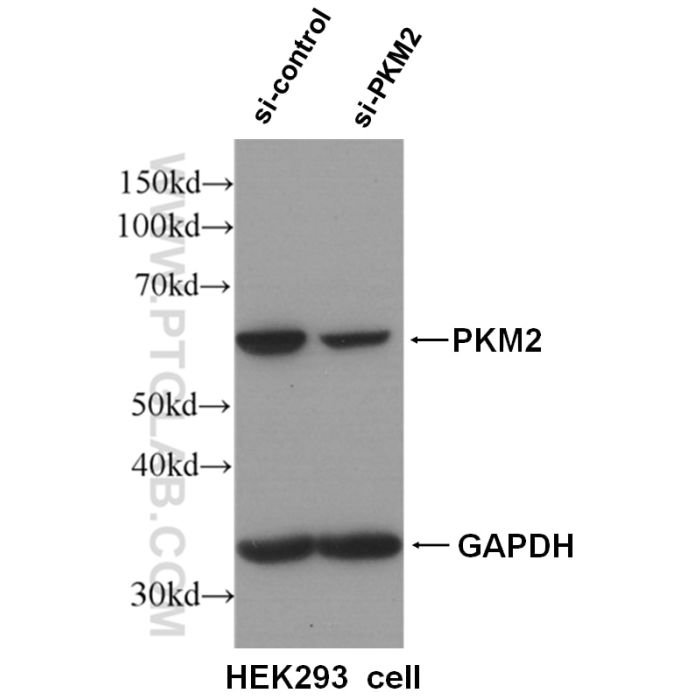

| Tested Applications — Positive WB detected in | A549 cells, 293 cell, C6 cells, HEK-293 cells, HeLa cells, MCF-7 cells, N/A, Recombinant protein, HEK-293T cells, mouse stomach tissue |
| Tested Applications — Positive IP detected in | A549 cells, MCF-7 cells |
| Tested Applications — Positive IHC detected in | human lung cancer tissue, human colon cancer tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |
| Tested Applications — Positive IF/ICC detected in | HeLa cells, MCF-7 cells |
| Recommended Dilutions — Western Blot (WB) | WB : 1:2000-1:12000 |
| Recommended Dilutions — Immunoprecipitation (IP) | IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate |
| Recommended Dilutions — Immunohistochemistry (IHC) | IHC : 1:100-1:400 |
| Recommended Dilutions — Immunofluorescence (IF)/ICC | IF/ICC : 1:50-1:500 |
| Positive WB detected in | A549 cells, 293 cell, C6 cells, HEK-293 cells, HeLa cells, MCF-7 cells, N/A, Recombinant protein, HEK-293T cells, mouse stomach tissue |
| Positive IP detected in | A549 cells, MCF-7 cells |
| Positive IHC detected in | human lung cancer tissue, human colon cancer tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |
| Positive IF/ICC detected in | HeLa cells, MCF-7 cells |
| Western Blot (WB) | WB : 1:2000-1:12000 |
| Immunoprecipitation (IP) | IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate |
| Immunohistochemistry (IHC) | IHC : 1:100-1:400 |
| Immunofluorescence (IF)/ICC | IF/ICC : 1:50-1:500 |
| Tested Reactivity | human, mouse, rat |
| Cited Reactivity | human, mouse, rat, chicken, bovine |
| Class | Polyclonal |
| Type | Antibody |
| Immunogen | Peptide Predict reactive species |
| Full Name | PKM pyruvate kinase, muscle |
| Calculated Molecular Weight | 58 kDa |
| Observed Molecular Weight | 58 kDa |
| GenBank Accession Number | NM_002654 |
| Gene Symbol | PKM |
| Gene ID (NCBI) | 5315 |
| RRID | AB_1851537 |
| Conjugate | Unconjugated |
| Purification Method | Antigen affinity purification |
| UNIPROT ID | P14618 |
| Storage Buffer | PBS with 0.02% sodium azide and 50% glycerol, pH 7.3. |
| Storage Conditions | Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20 o C storage. 20ul sizes contain 0.1% BSA. |
| IF protocol for PKM2-specific antibody 15822-1-AP | Download protocol |
| IHC protocol for PKM2-specific antibody 15822-1-AP | Download protocol |
| IP protocol for PKM2-specific antibody 15822-1-AP | Download protocol |
| WB protocol for PKM2-specific antibody 15822-1-AP | Download protocol |
| human | WB Signal Transduct Target Ther Epigenetic reader ZMYND11 noncanonical function restricts HNRNPA1-mediated stress granule formation and oncogenic activity Authors - Cheng Lian View Article |
| mouse,human | WB Cell Metab Astrocytic LRP1 enables mitochondria transfer to neurons and mitigates brain ischemic stroke by suppressing ARF1 lactylation Authors - Jian Zhou View Article |
| mouse | WB Bioact Mater Designed bone-targeting ROS-responsive nanoplatform for precision glycolysis inhibition in postmenopausal osteoporosis. Authors - Qihang Wu View Article |
| Swati (Verified Customer) (09-26-2025) | Shows a clear band around 58 kDa. No non specific bands observed. Applications: Western Blot Primary Antibody Dilution: 1: 1000 in 5% milk in TBS-T Cell Tissue Type: Human lung pericytes |
| Pallavi (Verified Customer) (03-31-2025) | i used 1:5000 anti-PKM2 15522-1-AP for western blot on purified protein and it worked perfectly. Applications: Western Blot Primary Antibody Dilution: 1:5000 Cell Tissue Type: purified protein |
| Shinford (Verified Customer) (09-24-2023) | The antibody concentration of 1:1000 worked well, and bands could be detected in a variety of cell lines. There were slight non-specific bands in some tissue and organ cells. Applications: Western Blot Primary Antibody Dilution: 1:1000 Cell Tissue Type: Tumor cell lines derived from multiple systems, tissues and organs。 PKM2-specific Antibody Western Blot validation (1:1000 dilution) in Tumor cell lines derived from multiple systems, tissues and organs。 (Cat no:15822-1-AP) |
| Kristian (Verified Customer) (06-07-2021) | PKM2 (red) is detected in proximale tubules where HIF1A-signaling is activated. Applications: Immunofluorescence Primary Antibody Dilution: 1:200 Cell Tissue Type: Transgenic mouse kidney (TRACK) PKM2-specific Antibody Immunofluorescence validation (1:200 dilution) in Transgenic mouse kidney (TRACK) (Cat no:15822-1-AP) |
| Kishor (Verified Customer) (02-22-2019) | I am very much satisfied with almost all antibodies from Proteintech. This antibody is working very good at 1:1000 dilution for human cancer and primary cells. Applications: Western Blot, Primary Antibody Dilution: 1:1000 Cell Tissue Type: H69, HUCCT-1 PKM2-specific Antibody Western Blot, validation (1:1000 dilution) in H69, HUCCT-1 (Cat no:15822-1-AP) |
| Citations | 429 |
| Dilutions | WB : 1:2000-1:12000 IP : 0.5-4.0 ug for IP and 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate for WB IHC : 1:100-1:400 IF/ICC : 1:50-1:500 |
| Isotype | IgG |
| Clonality | Polyclonal |
| Clone Number | - |
| Conjugation | Unconjugated |
PKM, also named as OIP3, PK2, PK3, PKM, p58, THBP1, CTHBP and Tumor M2-PK, belongs to the pyruvate kinase family. It is glycolytic enzyme that catalyzes the transfer of a phosphoryl group from phosphoenolpyruvate (PEP) to ADP, generating ATP. It stimulates POU5F1-mediated transcriptional activation. PKM plays a general role in caspase independent cell death of tumor cells. PKM has 2 isoforms named as PKM1/M2. The activity of the M2 isoform (but not the M1 isoform) can be inhibited by tyrosine kinase signalling in tumourcells. The primary pyruvate kinase isoform before tumour development is PK-M1; however, the primary isoform from four independent tumours is PK-M2 (PMID:18337823). The immunogen of this antibody is M2 isoform and this antibody is specific to PKM2 isoform. This antibody can detect PKM2 monomer, dimer and tetramer (PMID: 36196894). Protocols Product Specific Protocols IF protocol for PKM2-specific antibody 15822-1-AP Download protocol IHC protocol for PKM2-specific antibody 15822-1-AP Download protocol IP protocol for PKM2-specific antibody 15822-1-AP Download protocol WB protocol for PKM2-specific antibody 15822-1-AP Download protocol Standard Protocols Click here to view our Standard Protocols
