| Catalog Number | 17952-1-AP |
| Synonyms | CD274, PD-L1, B7 H1, B7-H1, hPD-L1 |
| Host | Rabbit |
| Reactivity | human, mouse, rat |
| Form | Liquid |
| Formulation | PBS, Azide, Glycerol |
| Applications | WB, IHC, IF-P, IP, CoIP, ChIP, ELISA |
| Applications | WB, IHC, IF-P, IP, ELISA |
| Host / Isotype | Rabbit / IgG |

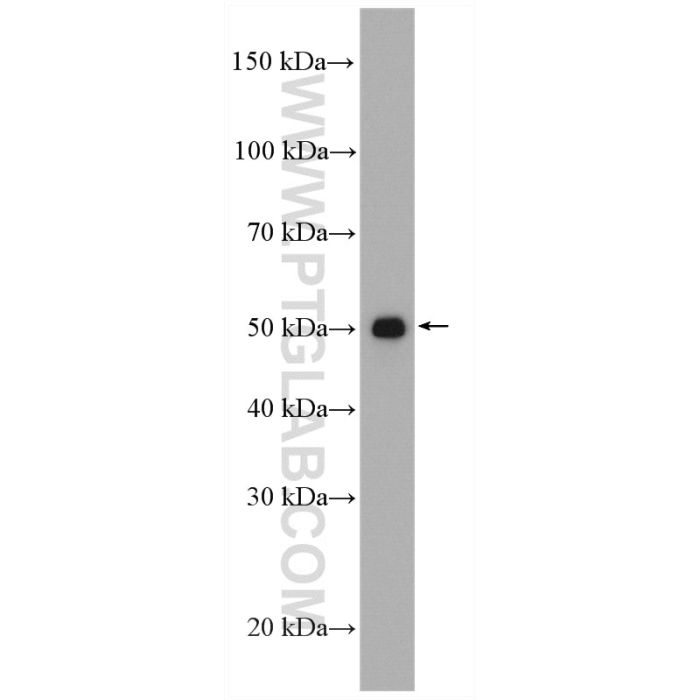

| Tested Applications — Positive WB detected in | human placenta tissue, A375 cells, IFN gamma treated A549 cells, HepG2 cells, K-562 cells, mouse heart tissue, mouse skeletal muscle tissue, rat kidney tissue |
| Tested Applications — Positive IP detected in | mouse heart tissue |
| Tested Applications — Positive IHC detected in | human tonsillitis tissue, human stomach cancer tissue, mouse heart tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |
| Tested Applications — Positive IF-P detected in | human tonsillitis tissue |
| Recommended Dilutions — Western Blot (WB) | WB : 1:500-1:1000 |
| Recommended Dilutions — Immunoprecipitation (IP) | IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate |
| Recommended Dilutions — Immunohistochemistry (IHC) | IHC : 1:1000-1:4000 |
| Recommended Dilutions — Immunofluorescence (IF)-P | IF-P : 1:50-1:500 |
| Positive WB detected in | human placenta tissue, A375 cells, IFN gamma treated A549 cells, HepG2 cells, K-562 cells, mouse heart tissue, mouse skeletal muscle tissue, rat kidney tissue |
| Positive IP detected in | mouse heart tissue |
| Positive IHC detected in | human tonsillitis tissue, human stomach cancer tissue, mouse heart tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |
| Positive IF-P detected in | human tonsillitis tissue |
| Western Blot (WB) | WB : 1:500-1:1000 |
| Immunoprecipitation (IP) | IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate |
| Immunohistochemistry (IHC) | IHC : 1:1000-1:4000 |
| Immunofluorescence (IF)-P | IF-P : 1:50-1:500 |
| Tested Reactivity | human, mouse, rat |
| Cited Reactivity | human, mouse, rat |
| Class | Polyclonal |
| Type | Antibody |
| Immunogen | CatNo: Ag12432 Product name: Recombinant human PD-L1/CD274 protein Source: e coli. -derived, PGEX-4T Tag: GST Domain: 25-241 aa of BC074984 Sequence: KDLYVVEYGSNMTIECKFPVEKQLDLAALIVYWEMEDKNIIQFVHGEEDLKVQHSSYRQRARLLKDQLSLGNAALQITDVKLQDAGVYRCMISYGGADYKRITVKVNAPYNKINQRILVVDPVTSEHELTCQAEGYPKAEVIWTSSDHQVLSGKTTTTNSKREEKLFNVTSTLRINTTTNEIFYCTFRRLDPEENHTAELVIPELPLAHPPNERTHL Predict reactive species |
| Full Name | CD274 molecule |
| Calculated Molecular Weight | 290 aa, 33 kDa |
| Observed Molecular Weight | 45-56 kDa, 65-70 kDa |
| GenBank Accession Number | BC074984 |
| Gene Symbol | PD-L1 |
| Gene ID (NCBI) | 29126 |
| RRID | AB_10597552 |
| Conjugate | Unconjugated |
| Purification Method | Antigen affinity purification |
| UNIPROT ID | Q9NZQ7 |
| Storage Buffer | PBS with 0.02% sodium azide and 50% glycerol, pH 7.3. |
| Storage Conditions | Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20 o C storage. 20ul sizes contain 0.1% BSA. |
| IF protocol for PD-L1/CD274 antibody 17952-1-AP | Download protocol |
| IHC protocol for PD-L1/CD274 antibody 17952-1-AP | Download protocol |
| IP protocol for PD-L1/CD274 antibody 17952-1-AP | Download protocol |
| WB protocol for PD-L1/CD274 antibody 17952-1-AP | Download protocol |
| human | WB,IHC,IF Mol Ther Targeting leucine-rich repeat serine/threonine-protein kinase 2 sensitizes pancreatic ductal adenocarcinoma to anti-PD-L1 immunotherapy Authors - Kang Sun View Article |
| mouse,human | IHC,IF Acta Pharm Sin B Whole-body PET tracking of a d-dodecapeptide and its radiotheranostic potential for PD-L1 overexpressing tumors. Authors - Kuan Hu View Article |
| Citations | 264 |
| Dilutions | WB : 1:500-1:1000 IP : 0.5-4.0 ug for IP and 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate for WB IHC : 1:1000-1:4000 IF-P : 1:50-1:500 |
| Isotype | IgG |
| Clonality | Polyclonal |
| Clone Number | - |
| Conjugation | Unconjugated |
PD-L1, also known as CD274 or B7H1, stands for programmed cell death ligand 1. It is a type I transmembrane protein that is thought to repress immune responses by binding to its receptor (PD1), thus inhibiting T-cell activation, proliferation, and cytokine production. It contains V-like and C-like immunoglobulin domains. PD-L1 expression is regulated by various cytokines, such as TNF-α or LPS (ISSN: 1848-7718). Increased expression of this protein in certain types of cancers, e.g., renal cell carcinoma or colon cancer, correlates with poor prognosis. What is the molecular weight of PD-L1? Depending on the isoform, the calculated molecular weight of the protein varies between 20 and 33 kDa (176-290 aa). What are the isoforms of PD-L1? According to NCBI, three different isoforms have been identified. There are significant differences in the untranslated and protein coding regions. What is the subcellular localization and tissue specificity of PD-L1? It is predicted to localize in the plasma membrane of various cell types, with a particularly high expression in placental trophoblast and subsets of immune cells. High levels of PD-L1 protein have also been detected in lung and colon tissues. What is the function of PD-L1 in immune responses? PD-L1 is critical for the induction and maintenance of immune self-tolerance during infection or inflammation in normal tissues. The interaction of PD-L1 and its receptors is responsible for preventing auto-immune phenotypes and balancing the overall immune response in situations such as pregnancy or tissue allografts. The interaction between PD-L1 and PD-1 or B7.1 starts an inhibitory signaling cascade, which results in the decreased proliferation of antigen-specific T-cells and increased survival of regulatory T-cells (PMID: 15240681). How can PD-L1's implication in cancer be used as a drug target? In certain tumors, high expression of PD-L1 serves as a stop-sign to inhibit the recognition of cancer cells by T-cells (PMID: 23087408). The interaction between PD-L1 and its receptors (PD1 and B7.1) is a mechanism for the tumor to evade the host immune response (PMID: 29357948). Several mAbs have been developed to target that interaction and thus prevent the inactivation of cytotoxic T-cells by the tumor (PMIDs: 23890059, 18173375). Protocols Product Specific Protocols IF protocol for PD-L1/CD274 antibody 17952-1-AP Download protocol IHC protocol for PD-L1/CD274 antibody 17952-1-AP Download protocol IP protocol for PD-L1/CD274 antibody 17952-1-AP Download protocol WB protocol for PD-L1/CD274 antibody 17952-1-AP Download protocol Standard Protocols Click here to view our Standard Protocols
Publications
