| Catalog Number | 80501-1-RR |
| Synonyms | TOMM20, KIAA0016, MAS20, MOM19, tom 20 |
| Host | Rabbit |
| Reactivity | human, mouse, rat, pig, chicken, zebrafish |
| Form | Liquid |
| Formulation | PBS, Azide, Glycerol |
| Applications | WB, IHC, IF/ICC, FC (Intra), IP, ELISA |
| Applications | WB, IHC, IF/ICC, FC (Intra), ELISA |
| Host / Isotype | Rabbit / IgG |

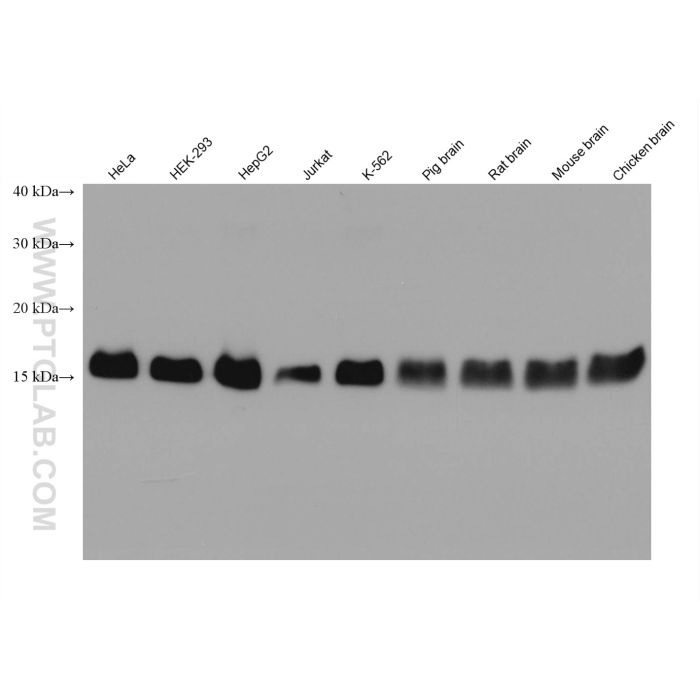

| Tested Applications — Positive WB detected in | HeLa cells, zebrafish tissue, HEK-293 cells, HepG2 cells, Jurkat cells, K-562 cells, pig brain tissue, rat brain tissue, mouse brain tissue, chicken brain tissue |
| Tested Applications — Positive IHC detected in | human liver tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |
| Tested Applications — Positive IF/ICC detected in | HepG2 cells, HeLa cells, A549 cells |
| Tested Applications — Positive FC (Intra) detected in | HeLa cells |
| Recommended Dilutions — Western Blot (WB) | WB : 1:2000-1:10000 |
| Recommended Dilutions — Immunohistochemistry (IHC) | IHC : 1:50-1:500 |
| Recommended Dilutions — Immunofluorescence (IF)/ICC | IF/ICC : 1:120-1:480 |
| Recommended Dilutions — Flow Cytometry (FC) (INTRA) | FC (INTRA) : 0.25 ug per 10^6 cells in a 100 µl suspension |
| Positive WB detected in | HeLa cells, zebrafish tissue, HEK-293 cells, HepG2 cells, Jurkat cells, K-562 cells, pig brain tissue, rat brain tissue, mouse brain tissue, chicken brain tissue |
| Positive IHC detected in | human liver tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |
| Positive IF/ICC detected in | HepG2 cells, HeLa cells, A549 cells |
| Positive FC (Intra) detected in | HeLa cells |
| Western Blot (WB) | WB : 1:2000-1:10000 |
| Immunohistochemistry (IHC) | IHC : 1:50-1:500 |
| Immunofluorescence (IF)/ICC | IF/ICC : 1:120-1:480 |
| Flow Cytometry (FC) (INTRA) | FC (INTRA) : 0.25 ug per 10^6 cells in a 100 µl suspension |
| Tested Reactivity | human, mouse, rat, pig, chicken, zebrafish |
| Cited Reactivity | human, mouse, rat |
| Class | Recombinant |
| Type | Antibody |
| Immunogen | CatNo: Ag2378 Product name: Recombinant human TOM20 protein Source: e coli. -derived, PGEX-4T Tag: GST Domain: 1-145 aa of BC000882 Sequence: MVGRNSAIAAGVCGALFIGYCIYFDRKRRSDPNFKNRLRERRKKQKLAKERAGLSKLPDLKDAEAVQKFFLEEIQLGEELLAQGEYEKGVDHLTNAIAVCGQPQQLLQVLQQTLPPPVFQMLLTKLPTISQRIVSAQSLAEDDVE Predict reactive species |
| Full Name | translocase of outer mitochondrial membrane 20 homolog (yeast) |
| Calculated Molecular Weight | 145 aa, 16 kDa |
| Observed Molecular Weight | 16 kDa |
| GenBank Accession Number | BC000882 |
| Gene Symbol | TOM20 |
| Gene ID (NCBI) | 9804 |
| RRID | AB_2918897 |
| Conjugate | Unconjugated |
| Purification Method | Protein A purification |
| UNIPROT ID | Q15388 |
| Storage Buffer | PBS with 0.02% sodium azide and 50% glycerol, pH 7.3. |
| Storage Conditions | Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20 o C storage. 20ul sizes contain 0.1% BSA. |
| FC protocol for TOM20 antibody 80501-1-RR | Download protocol |
| IF protocol for TOM20 antibody 80501-1-RR | Download protocol |
| IHC protocol for TOM20 antibody 80501-1-RR | Download protocol |
| WB protocol for TOM20 antibody 80501-1-RR | Download protocol |
| human | IP J Biol Chem The ubiquitin-binding protein ANKRD13A mediates VCP-dependent mitochondrial outer membrane rupture during PINK1/Parkin-mediated mitophagy. Authors - Wei-Hua Chu View Article |
| mouse | WB MethodsX Purification of murine cortex mitochondria using a modified magnetic bead isolation method. Authors - Eva Josic View Article |
| rat | WB Front Pharmacol Components of Panax ginseng and Rhodiola rosea regulate mitophagy via the SIRT1/3-PGC-1α-NRF2 pathway to improve myocardial ischemia-reperfusion injury. Authors - Ming Yao View Article |
| Citations | 8 |
| Dilutions | WB : 1:2000-1:10000 IHC : 1:50-1:500 IF/ICC : 1:120-1:480 FC (INTRA) : 0.25 ug per 10^6 cells in a 100 µl suspension |
| Isotype | IgG |
| Clonality | Recombinant |
| Clone Number | 1D22 |
| Conjugation | Unconjugated |
TOM20, also named as KIAA0016, belongs to the Tom20 family. It is a central component of the receptor complex responsible for the recognition and translocation of cytosolically synthesized mitochondrial preproteins. Together with TOM22, TOM20 functions as the transit peptide receptor at the surface of the mitochondrion outer membrane and facilitates the movement of preproteins into the TOM40 translocation pore. TOM20 is characterized as major docking receptors to mediate the recognition by different mechanisms. Protocols Product Specific Protocols FC protocol for TOM20 antibody 80501-1-RR Download protocol IF protocol for TOM20 antibody 80501-1-RR Download protocol IHC protocol for TOM20 antibody 80501-1-RR Download protocol WB protocol for TOM20 antibody 80501-1-RR Download protocol Standard Protocols Click here to view our Standard Protocols
